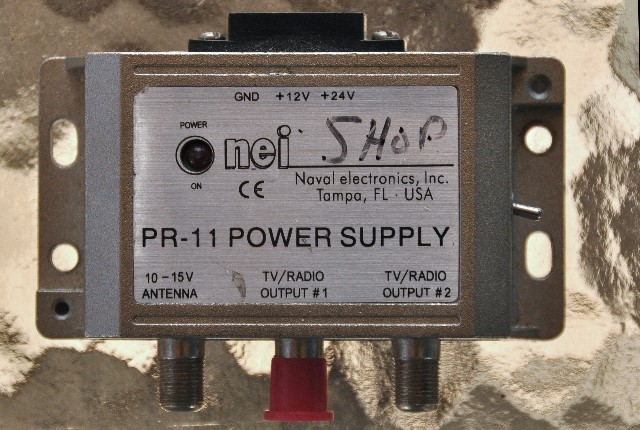

Opening the PR-11 Power Supply

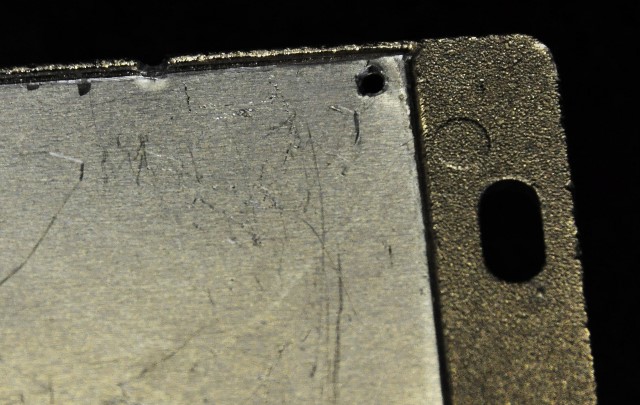

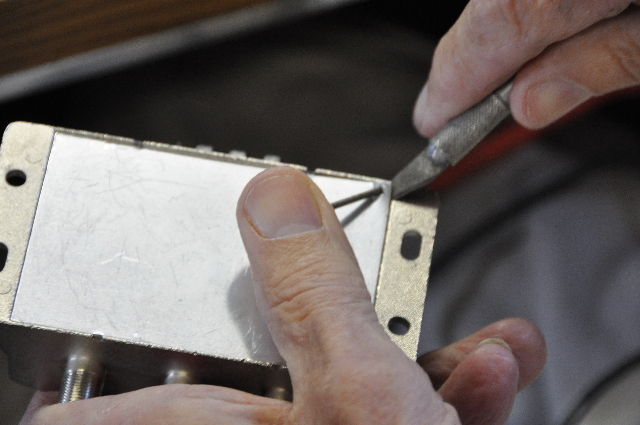

 Drill small hole in the cornor of the back cover

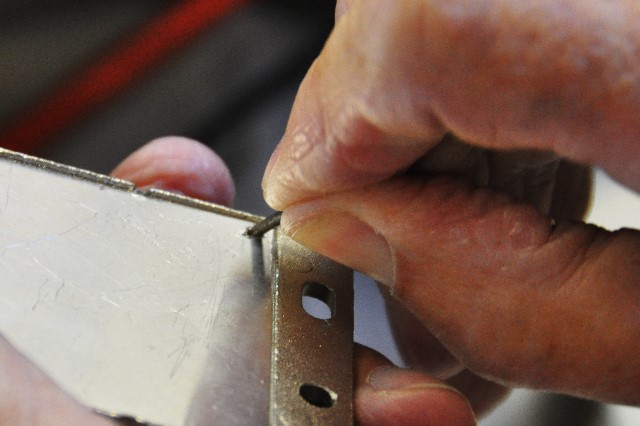

insert a small nail in the hole

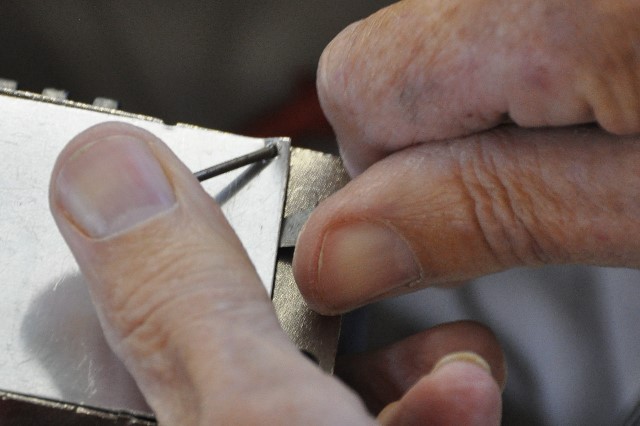

bend the cornor of the back as shown below

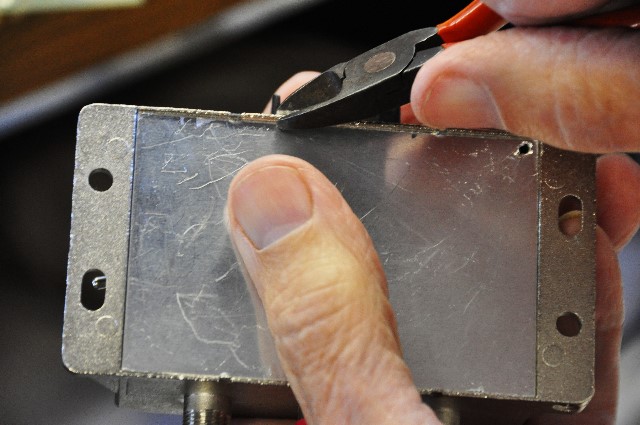

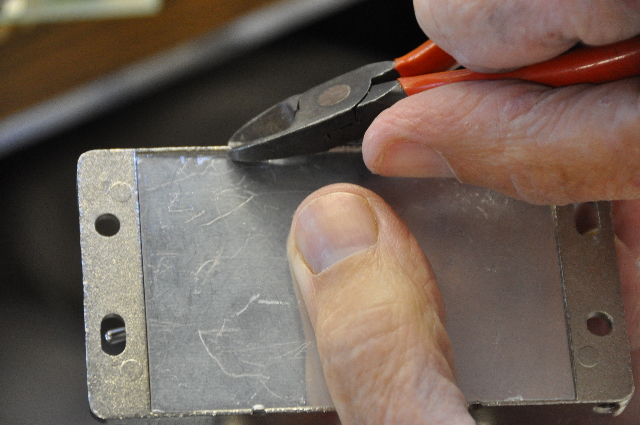

bend back the (4) tabs in the case with cutters to release the back

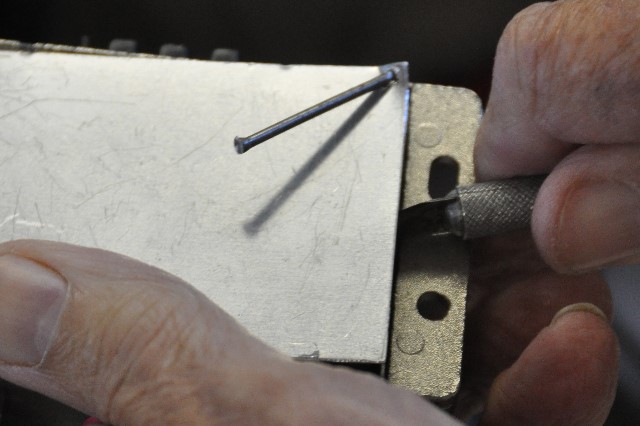

Slide a knife under the cover

Work the knife down the cover to take it from the case.

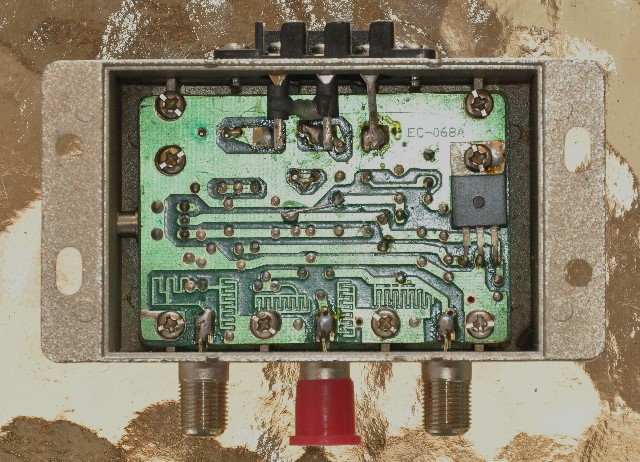

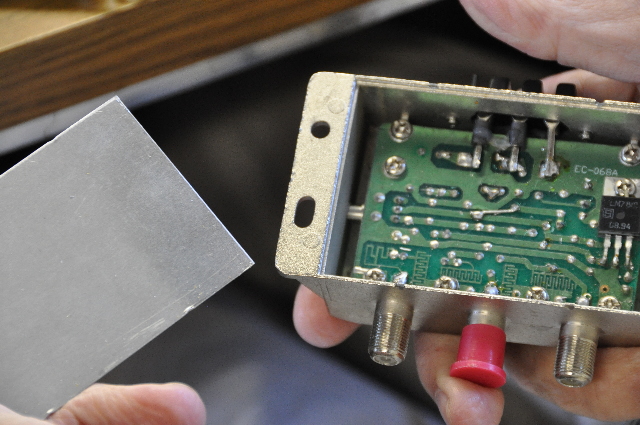

remove the back

common fault is broken solder connection or voltage regulator

Did you check the inline fuse?
