Double isolated TV/Radio N1 Outlets

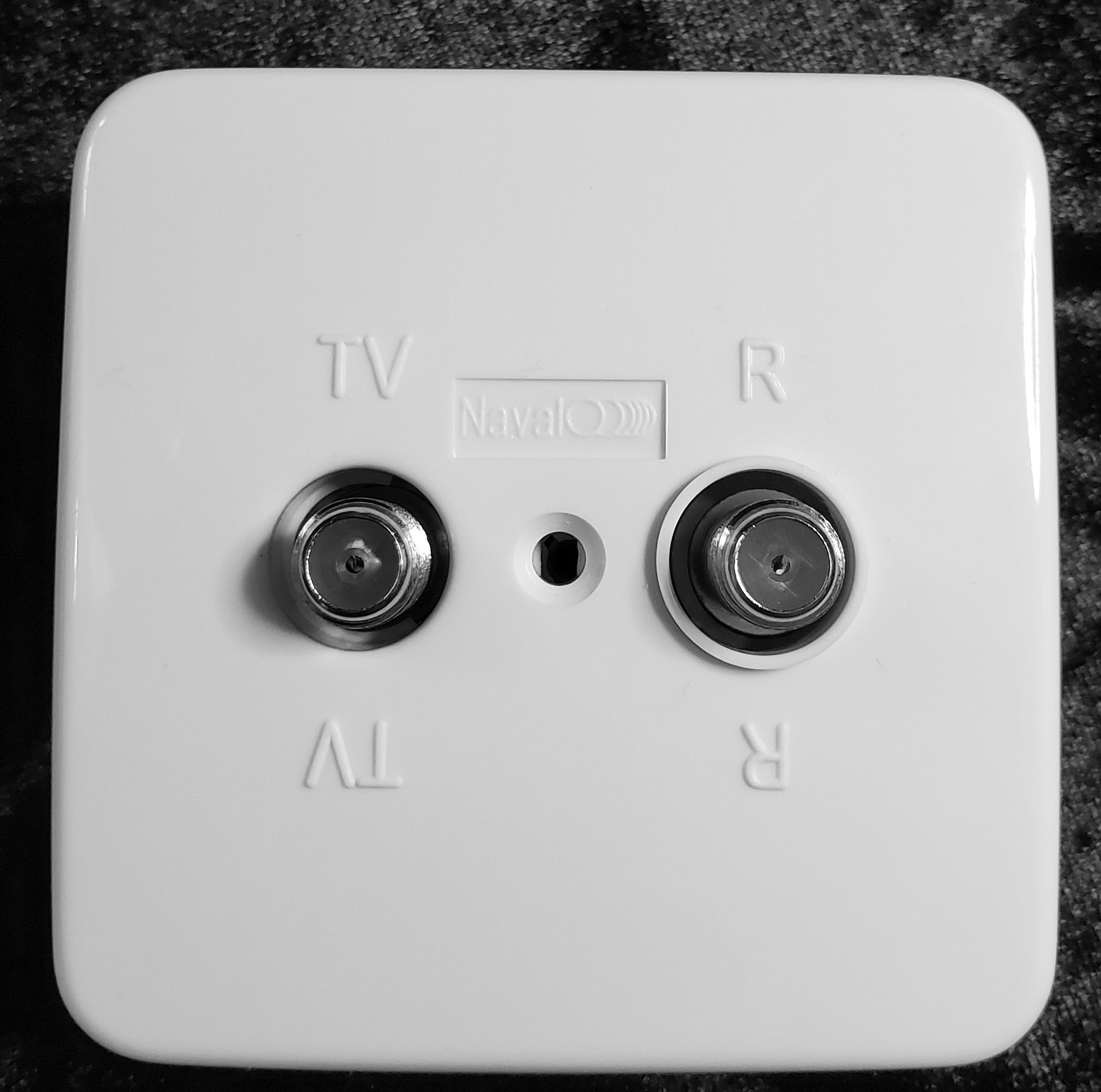

N1 Outlet F

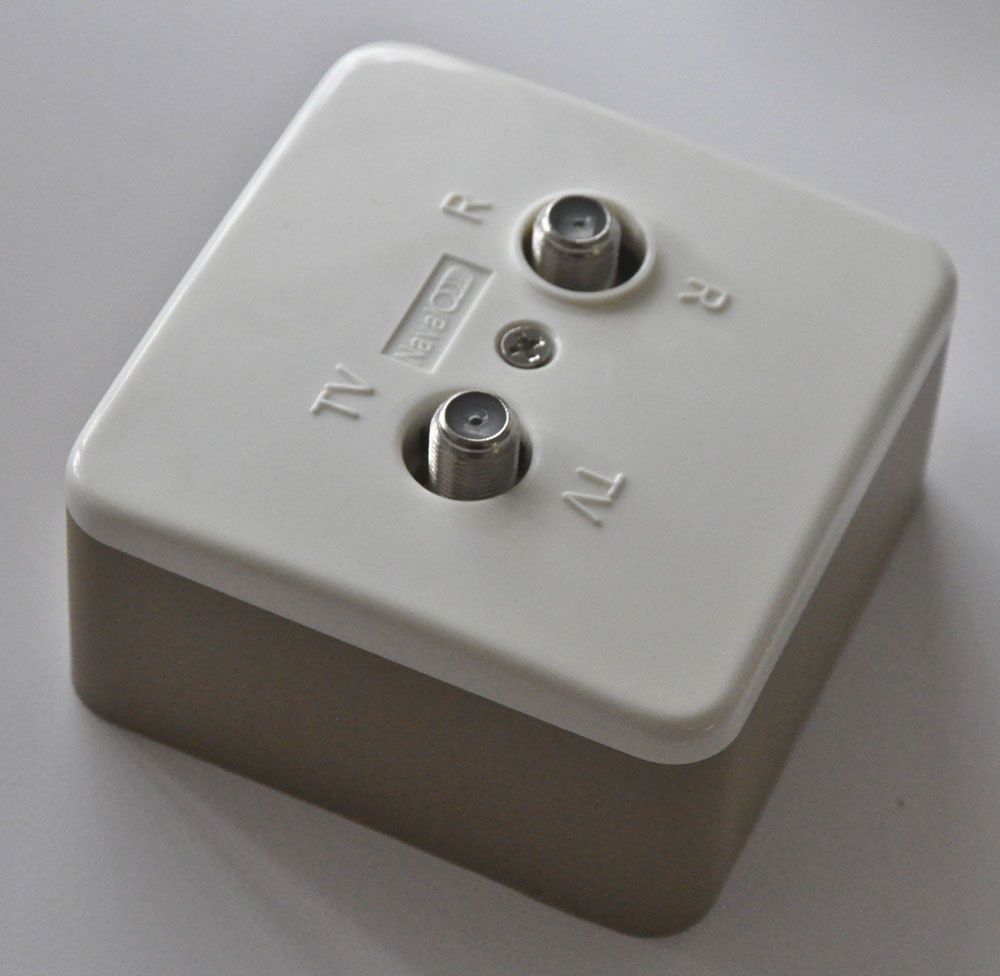

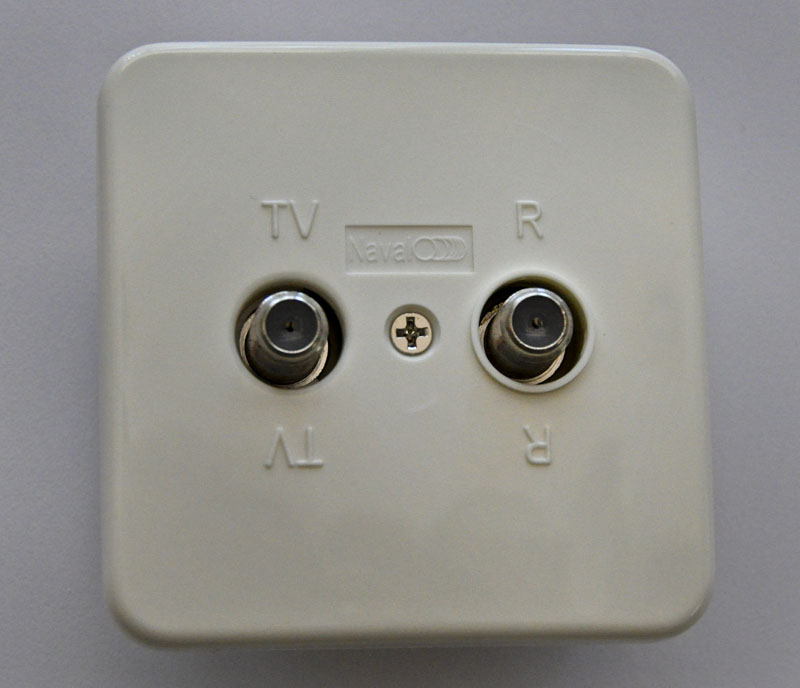

N1 Outlet Type "F"

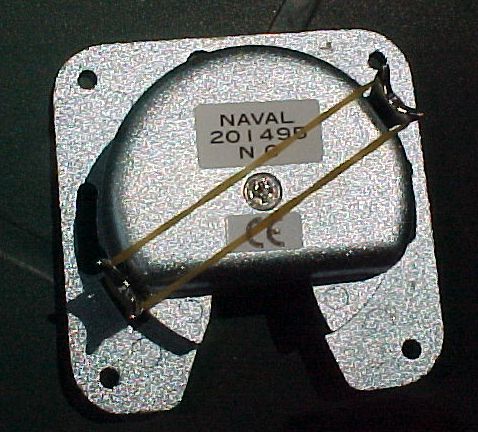

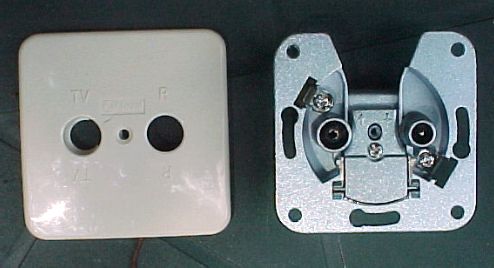

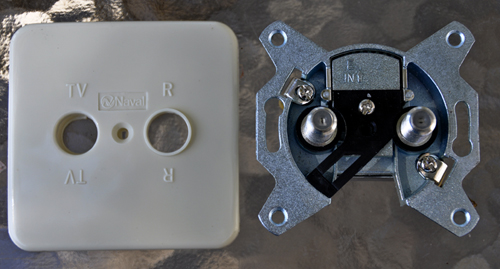

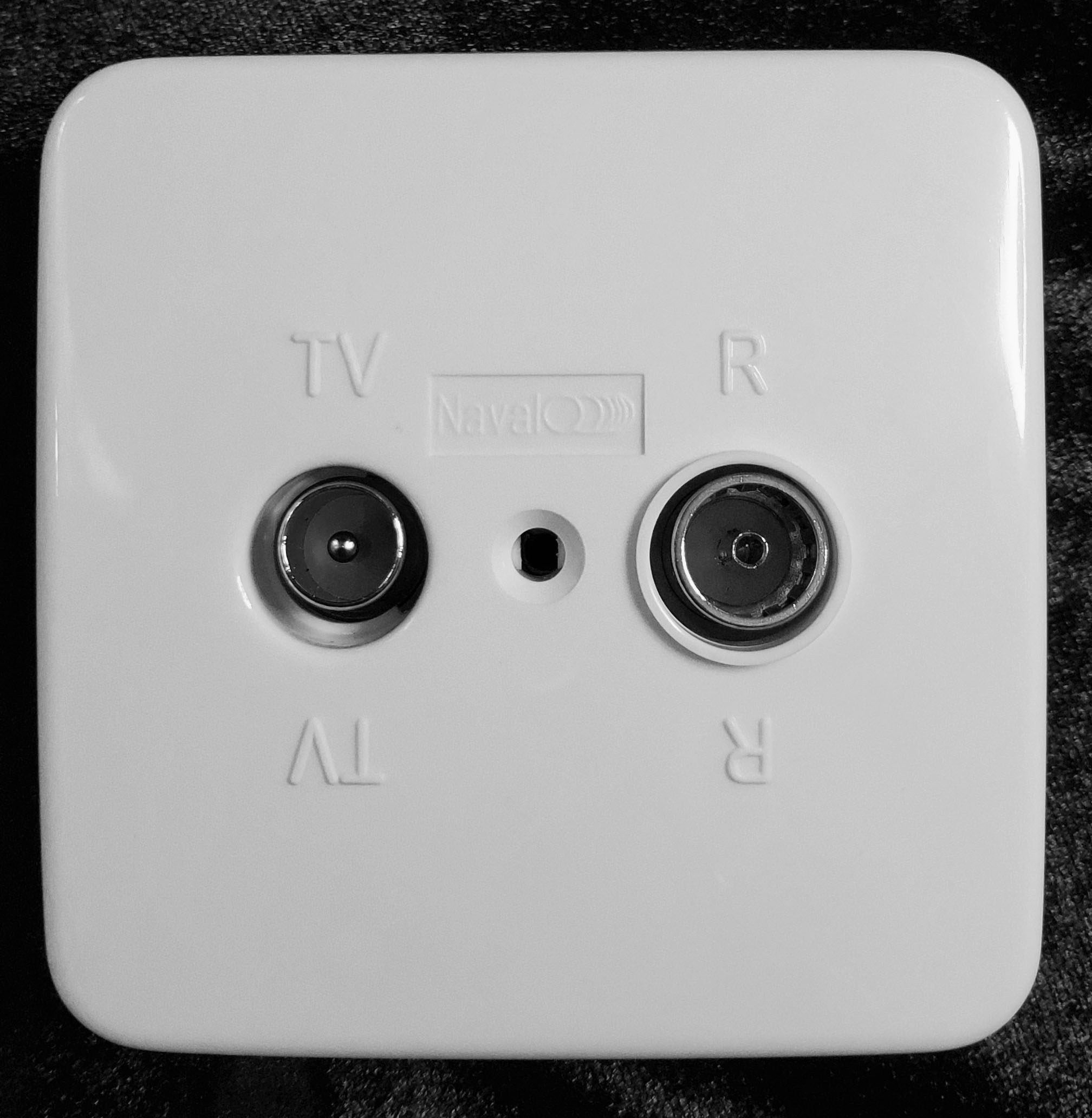

N1 Outlet IEC with Cover

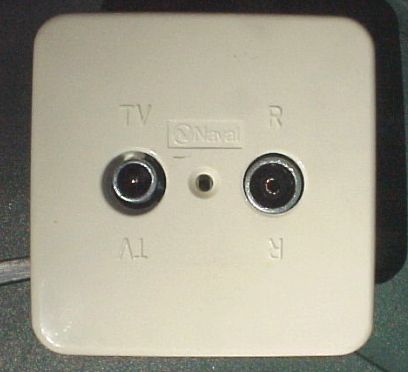

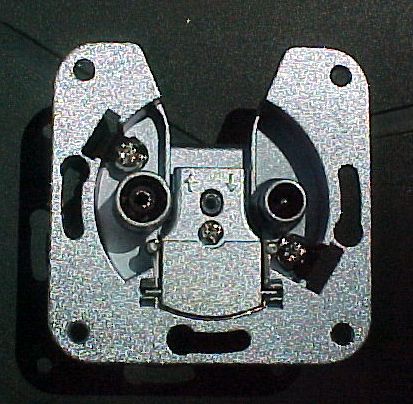

N1 outlet type "IEC/PAL"



One outlet for Radio and TV, available as simple outlet or directional coupler with double drop outlet and with various isolation values from 21 to 4dB.

Naval double galvanically isolated outlets N1 with IEC 9.5 mm  connectors or F-connectors are a new series that have been designed especially for marine use and covers the complete TV-Radio frequencies of 0.1–890 MHz world-wide. N1 is galvanically double isolated to avoid problems with interference and grounding which are quite common in larger systems.

The outlet has improved RL and surge protection witch makes it especially suitable for digital signals. N1 is for star net only, where each output from a tap-off or a splitter can feed max one N1.

The frame called N, for surface mounting, is designed to fit all the Naval outlets. It is manufactured in white plastic. The standard supply of Naval outlets includes a full size white cover (76 x 76 mm). N1 need not be terminated.


N1 Outlet Data Sheet (PDF)

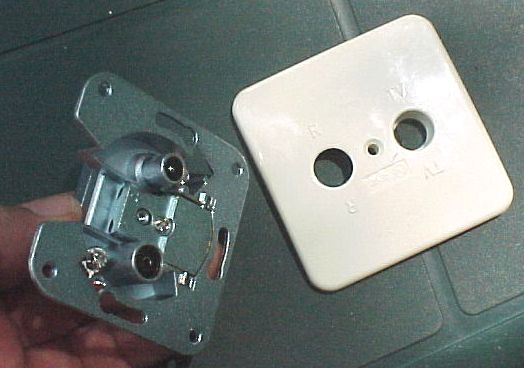

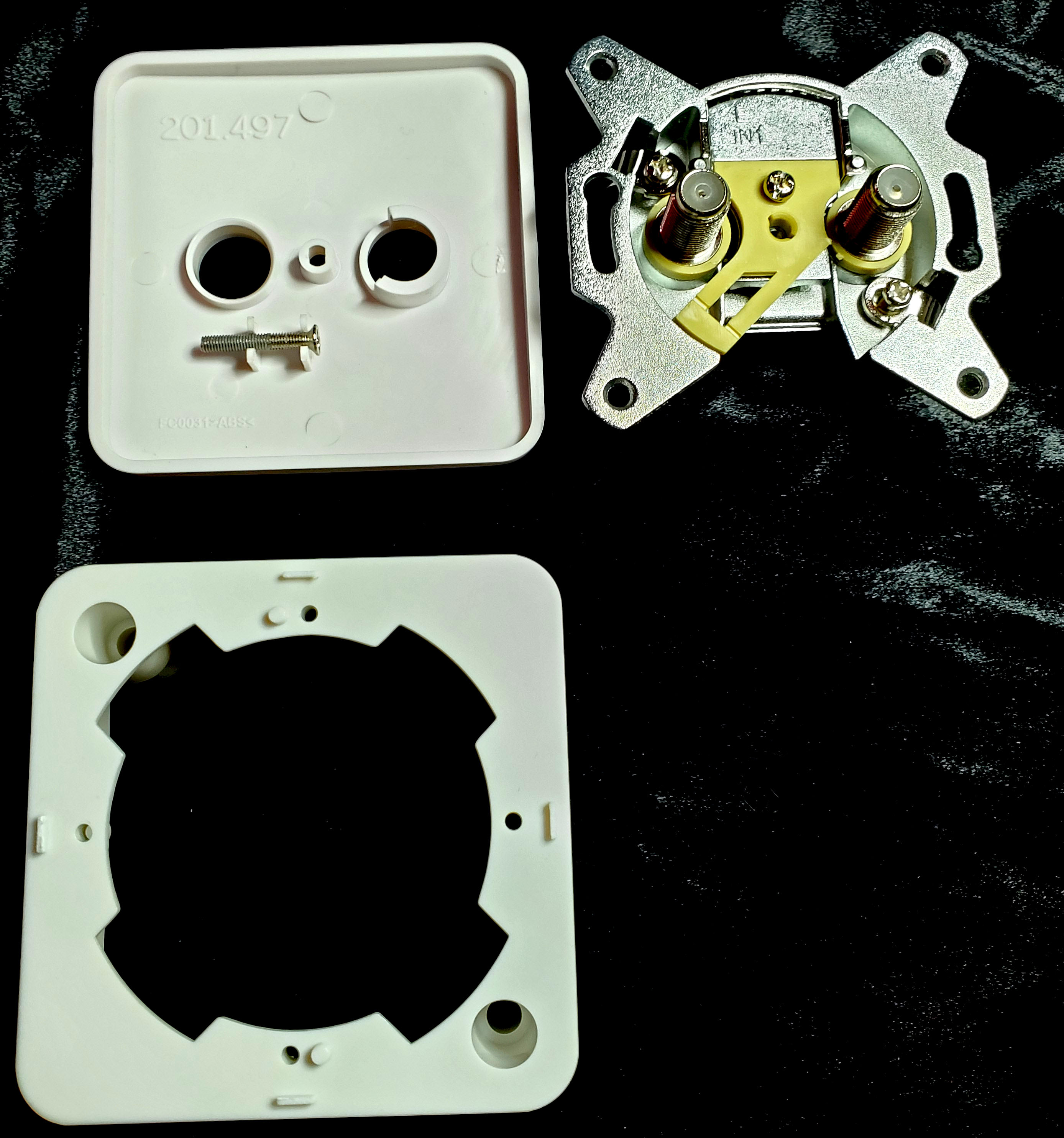

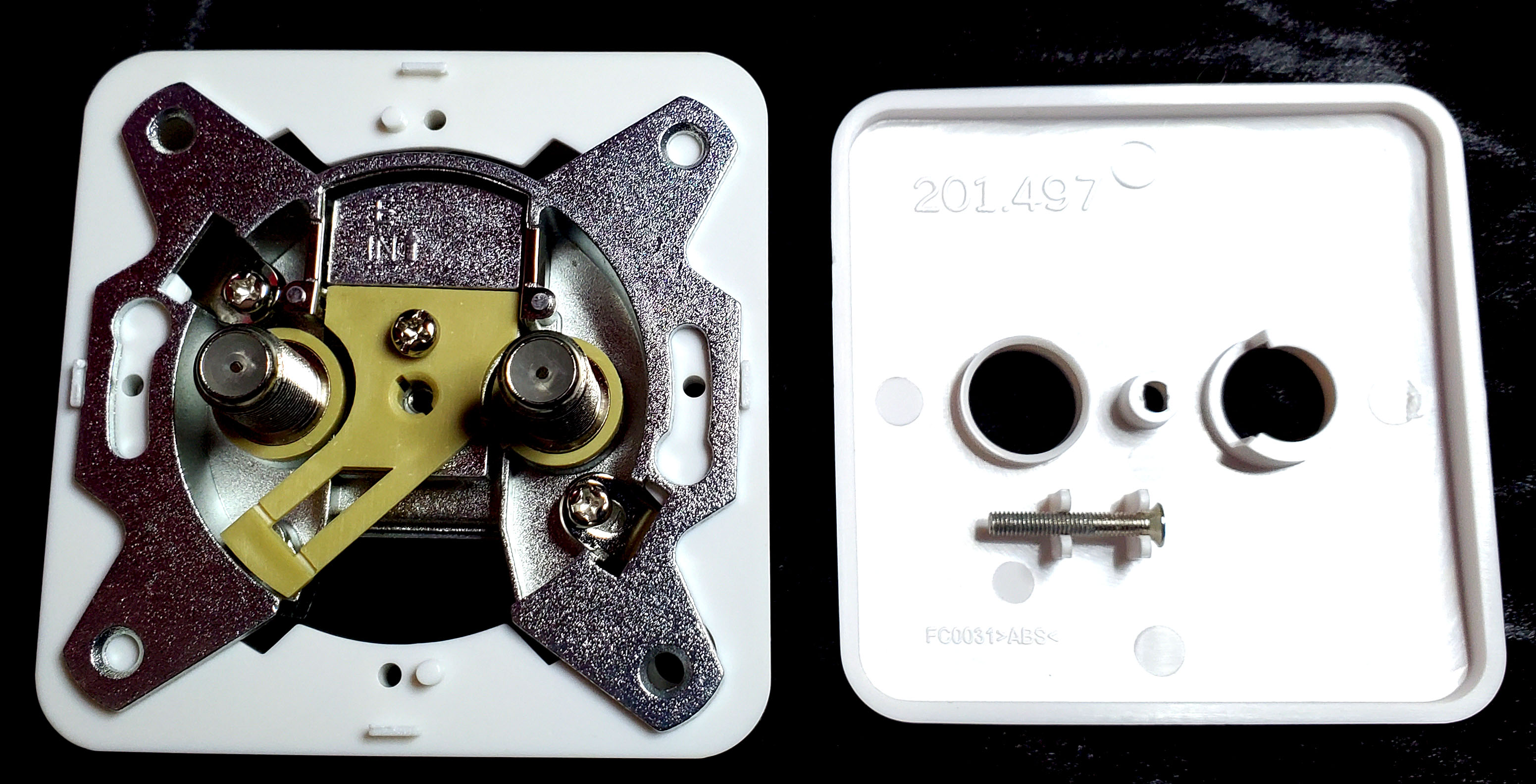

N1 Outlet with Cover and Frame
