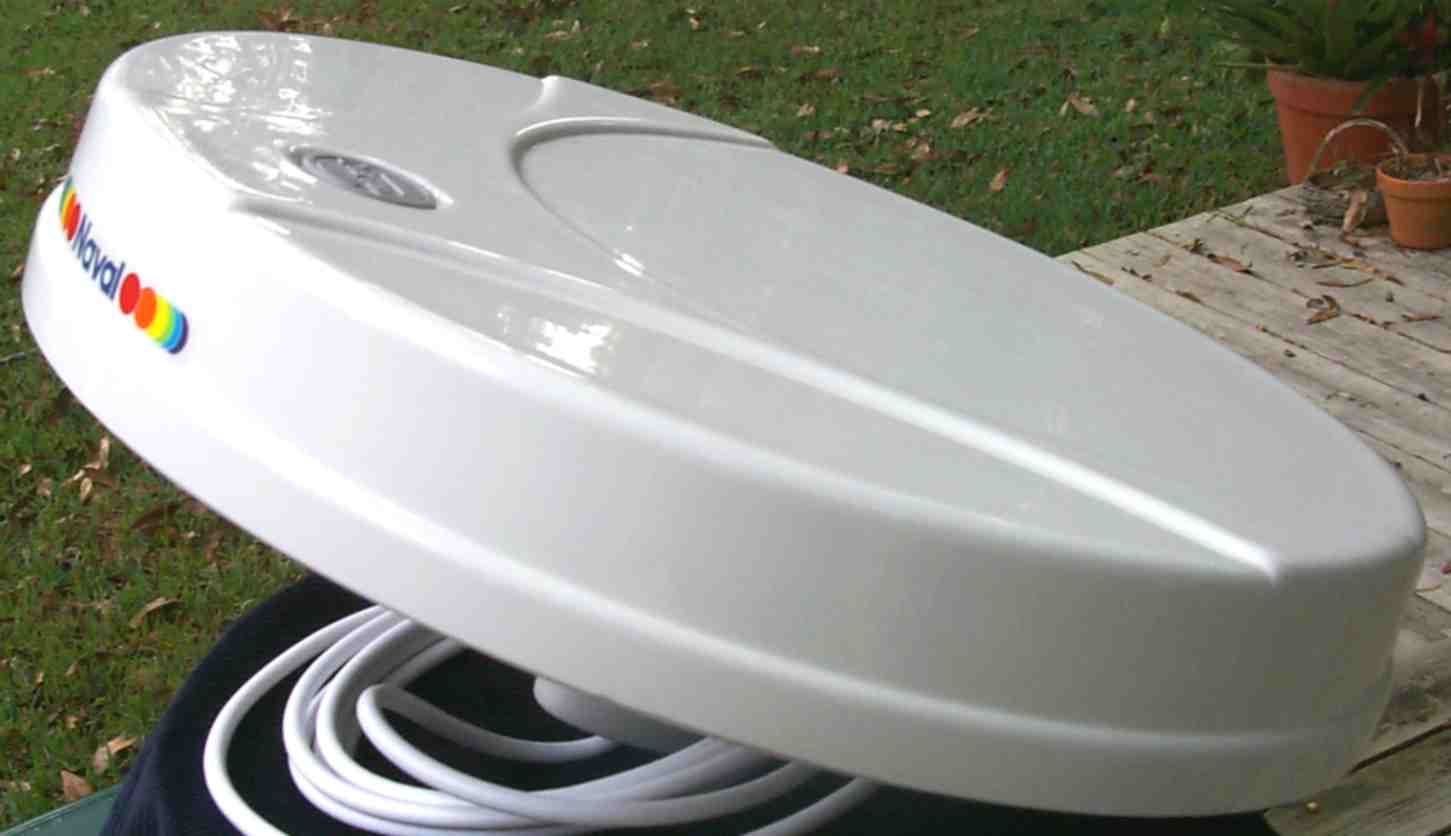

The New Extra Performance PR-414 Marine Radio TV Antenna


Naval PR-414 FM-AM-TV Antenna Naval PR-414 Dimension
Dimensions on Antenna: width 44.5cm (17.5 inches), height 20 cm (8 inches)
ALMAG Marine Alloy Flange: 3 inches high and it mounts on a 1.5 inches od pipe


PR-414 AM-SW-FM/DAB+ TV Marine Antenna

PR-414 is an omni-directional, active, wideband Terrestrial AM-FM-TV receiving antenna (0.1-860 MHz) for marine use, specially designed for craft equipped with one or two Radio and TV sets as on Coasters in limited international trade, Fishing-boats, Tugs, Pilot Service Craft and Rescue Cruisers, where extra performance in a highly robust package is appreciated.

PR-414 is a low profile antenna, based on 3 independent low noise amplifiers integrated directly to the omni-directional multi-element antenna. The antenna's exterior is made of UV protected thick ABS plastic, which requires no maintenance. All inner parts are embedded in solid polyurethane foam for protection from heavy vibration, moisture and sub zero temperatures. Mounting hardware is made of Marine Grade Almag Aluminum alloy. The integral low noise 3 band 6 transistor amplifier increases the sensitivity of the system as well as compensating for cable-losses in the antenna downlead. Separating the amplifiers benifits intermod rejection and allows for more gain with less noise.The PR-414 features high performance 5 Ghz bi- polar microwave transistors, which are protected against static charge.

PR-414 utilizes a "3 off-set broadband dipole element configuration" with each element covering a 120 degree view of the surroundings and a much improved omni-directional antenna pattern when compared with other antennas.

The PR414 antenna is delivered with 4ft (around 1.2 meters) or 16 meters (50 ft) of 75 Ohm RG6U low loss coaxial cable and custom lengths can be arranged. The antenna includes a coax seal F connector splice kit and
PR-11 power box with two outputs for 12 or 24 VDC operation. Our special taps and splitters are needed for AM and SW operation and reverse path is not available in this case.

Dimension and Width:


Technical Specification:

Frequency range: 0.1-860 MHz

Average AM HF SW gain: 0.1~26.5 MHz, 12-15 dB (Ka=0.12)

Average Band 1/FM gain: 40~110 MHz, 25dB

Average VHF/DAB+ gain: 170~240 MHz, 25dB

Average UHF gain: 470~890 MHz, tilt 20-25 dB (amp)

VHF Noise figure: 3.0 dB

UHF Noise figure: 2.5 dB

Max output level: 06 dBuV min (2 signals 60 dBIM)

Third order intermod: >20 dB IP3

Filters: Band pass 100 kHz-30 MHz., 40-110 MHz.,174-230 MHz.,470-860 MHz.

Broadband rejection filter: 140-165 MHz.

Polarization: horizontal

Antenna pattern: omni-directional

Supply voltage to antenna: 15VDC nominal
• Current consumption: approx 120mA (with LED), approx 80-90 mA (w/o LED)

Operating temperature: -40 to +55 C.

Radome material: UV protected ABS

Flange material: Stainless, Almag or Powder Coated Almag
Almag Marine Alloy Flange  3"  high and mount on a 1.5" od pipe

Element material: copper foil

Element type: Two looped dipoles with Z match pcb

• Antenna dimension: 17.5 inch x 8 inch

Shipping weight: 9-14 lbs (depend  on cable lengths)

Shipping container dim: 19 x 19 x 9 inches
• Internal stabilization material: Polyurathane Foam injection

• Life expectancy in continuous commercial marine service 10 years+



PR-414 Data Sheet (PDF)
PR-414 Installation Guide (Manual in PDF)


CAGE Code: 0GMC3

National Stock Number (NSN): 5985-01-657-3426, PN: PR-414
